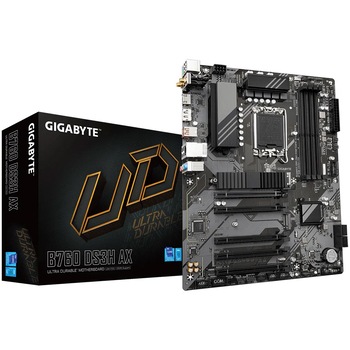

Placă de Bază Gigabyte - B760 DS3H AX
| Specificații | |
| Interfata Serial ATA | 4 x SATA 6Gb/s |
| Conectivitate | 1 x PS/2 1 x RJ-45 3 x audio jacks 1 x DisplayPort 4 x USB 2.0/1.1 1 x HDMI 2 x SMA antenna connectors 1 x USB Tip-C cu USB 3.2 Gen 2 1 x USB 3.2 Gen 2 Tip-A |
| LAN integrat | Realtek GbE LAN chip (1 Gbps/100 Mbps) |
| Sloturi memorie | 4 |
| Slot PCI | 1 x PCI-Express 4.0 16x 4 x PCI-Express x16 suport PCI-E 3.0 x1 |
| Audio integrat | Realtek Audio codec |
| Suport ECC | Da pentru Un-buffered DIMM 1Rx8/2Rx8 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 |
| Socket procesor | 1 |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 128 GB |
| Procesoare suportate | Generatia 13 si 12 Intel Core, Pentium Gold si Celeron |
| CPU Socket | 1700 |
| Chipset | Intel B760 |
| Format | ATX |
| Brand | Gigabyte |
| Conector sursa (pini) | 1 x 8 pin 12V 1 x 24 pin |
| Sloturi PCI-E x16 | 5 |
| Sloturi speciale | 1 x M.2 |
| BIOS & memorie BIOS | 1 x 128 Mbit flash |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 cm |
| Tehnologii suportate | Q-Flash Q-Flash Plus GIGABYTE Control Center (GCC) |
