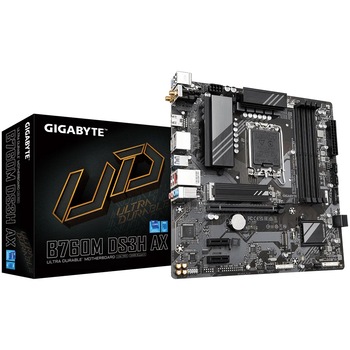

Placă de Bază Gigabyte - B760M DS3H AX
| Specificații | |
| Sloturi PCI-E x1 | 2 |
| Sloturi PCI-E x16 | 1 x PCIe 4.0 x16 |
| Slot PCI | PCI-Express 4.0 |
| Conector sursa (pini) | 1 x conector de alimentare cu 8 pini +12V 1 x 24-pin Main Power connector |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| LAN integrat | 2,5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Conectivitate | 2 x USB 2.0 1 x PS/2 1 x RJ-45 3 x Audio Jack 1 x HDMI 2 x DisplayPort 2 x SMA Antena Connectors (2T2R) 1 x USB 3.2 Gen 2 Tip-C 3 x USB 3.2 Gen 1 |
| Audio integrat | Realtek audio codec |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Frecventa memorie (MHz) | 7600(OC) MHz |
| Capacitate maxima memorie RAM | 128 GB |
| Tip memorie | DDR5 |
| Procesoare suportate | Intel de generatia a 12-a Intel de generatia a 13-a |
| Chipset | Intel B760 |
| CPU Socket | 1700 |
| Format | Micro ATX - 24,4 x 24,4 cm |
| Brand | Gigabyte |
| Sloturi speciale | 2 x M.2 |
| BIOS & memorie BIOS | AMI UEFI BIOS 1 x 128 Mbit flash |
| Dimensiuni (L x W) (cm) | Micro ATX - 24,4 x 24,4 cm |
| Tehnologii suportate | Q-Flash GIGABYTE Control Center (GCC) Smart Fan 6 |
