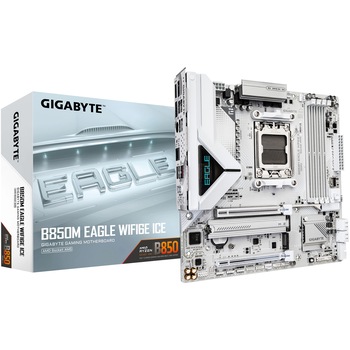

Placă de Bază Gigabyte - B850M EAGLE WF6E ICE
| Specificații | |
| Brand | Gigabyte |
| Format | mATX |
| CPU Socket | AM5 |
| Chipset | B850 |
| Procesoare suportate | Accepta procesoare desktop AMD Ryzen seria 9000/8000/7000 Socket AM5 |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 256 GB |
| Frecventa memorie (MHz) | 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MHz |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 5.0 |
| Audio integrat | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN integrat | Realtek 2.5GbE LAN |
| Conectivitate | 1 x PS/2 1 x RJ-45 4 x USB 2.0/1.1 3 x Audio Jack 1 x HDMI 2 x Antenna Ports 2 x DisplayPort 1 x Q-Flash Plus button 2 x USB 3.2 gen 1 1 x USB 3.2 Gen 2 Tip-C 1 x USB 3.2 Gen 2 Tip-A |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin ATX 12V |
| Sloturi PCI-E x16 | 2 |
| Sloturi speciale | 2 x M.2 |
| Tehnologii suportate | Q-Flash Smart Backup Q-Flash Plus GIGABYTE Control Center (GCC) Smart Fan 6 |
| BIOS & memorie BIOS | 1 x 256 Mbit flash |
| Dimensiuni (L x W) (cm) | 24.4 x 24.4 cm |
| Altele | 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Bluetooth 5.3 |
