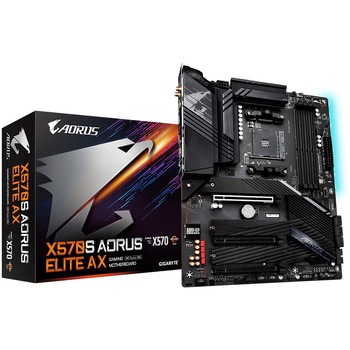

Placă de Bază Gigabyte X570S AORUS ELITE AX
| Specificații | |
| Interfata Serial ATA | 6 x SATA III |
| Conector sursa (pini) | 1 x 24 + 6 pin ATX 1 x 8 pin ATX 12V |
| Conectivitate | 1 x Optical S/PDIF OUT 1 x RJ-45 5 x Audio Jacks 2 x SMA Antena Connectors (2T2R) 1 x Q-Flash Plus button 4 x USB 3.2 gen 1 1 x USB 3.2 Gen 2 Tip-C 3 x USB 3.2 Gen 2 Tip-A 4 x USB 2.0 1 x HDMI |
| RAID integrat | 0, 1, 10 |
| LAN integrat | Realtek 2.5GbE LAN |
| Suport ECC | Variaza in functie de CPU |
| Slot PCI | PCI Express 4.0 x16 |
| Audio integrat | Realtek ALC1220-VB codec |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 |
| Socket procesor | 1 |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Chipset | AMD X570 |
| Procesoare suportate | AMD Ryzen 5000 Series Processors/ AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors/ AMD Ryzen 3000 G-Series Processors/ AMD Ryzen 2000 Series Processors/ AMD Ryzen 2000 G-Series Processors |
| CPU Socket | AM4 |
| Format | ATX |
| Brand | Gigabyte |
| Sloturi PCI-E x16 | 3 |
| Sloturi speciale | 3 x M.2 |
| Tehnologii suportate | EasyTune Q-Flash Xpress Install Fast Boot RGB FUSION Game Boost Smart Backup System Information Viewer Q-Flash Plus Wi-Fi 6E Bluetooth 5.2 |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
| BIOS & memorie BIOS | AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 256 Mbit flash |
