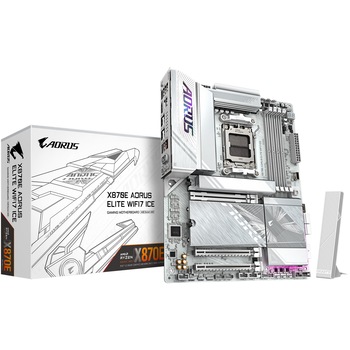

Placă de Bază Gigabyte - X870E A ELITE WF7 ICE
| Specificații | |
| Brand | Gigabyte |
| Format | ATX |
| CPU Socket | AM5 |
| Chipset | AMD X870 |
| Procesoare suportate | AMD Ryzen 7000/8000/9000 Series |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 256 GB |
| Frecventa memorie (MHz) | 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 5.0 |
| Audio integrat | Realtek ALC1220 codec |
| LAN integrat | Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Conectivitate | 1 x RJ-45 4 x USB 2.0/1.1 1 x HDMI 2 x Audio Jacks 1 x optical S/PDIF Out 2 x Antenna Ports 1 x Q-Flash Plus button 4 x USB 3.2 gen 1 2 x USB 3.2 Gen 2 Tip A 2 x USB4 |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 2 x 8 pin ATX 12V |
| Sloturi PCI-E x16 | 3 |
| Sloturi speciale | 4 x M.2 |
| Tehnologii suportate | Q-Flash Smart Backup Q-Flash Plus GIGABYTE Control Center (GCC) |
| BIOS & memorie BIOS | 1 x 256 Mbit flash |
| Altele | 2x2 Wi-Fi 7 (802.11be) Bluetooth 5.4 |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 cm |
