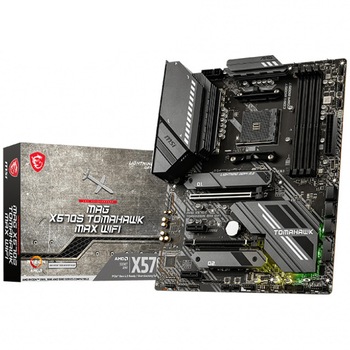

Placă de Bază MSI MAG X570S TOMAHAWK MAX WIFI
| Specificații | |
| Interfata Serial ATA | 6 x SATA III |
| Conectivitate | 1 x SPDIF optical out 5 x Audio Jacks 1 x PS/2 2 x USB 2.0 1 x Flash BIOS Button 1 x USB 3.2 Gen 2 Tip-C 3 x USB 3.2 Gen 2 Tip-A 2 x USB 3.2 Gen 1 Tip A 1 x Wi-Fi / Bluetooth 1 x RJ-45 2.5G LAN 1 x HDMI |
| Audio integrat | Realtek ALC4080 |
| LAN integrat | Realtek 8125B |
| RAID integrat | 0, 1, 10 |
| Sloturi memorie | 4 |
| Slot PCI | PCI Express 4.0 x16 (numai pentru seriile 5000 si 3000) |
| Suport ECC | Nu |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 /4533 / 4600/ 4733/ 4866/ 5000/ 5100 Mhz by JEDEC si A-XMP OC MODE |
| Socket procesor | 1 |
| Tip memorie | DDR4 |
| Capacitate maxima memorie RAM | 128 GB |
| Chipset | AMD X570 |
| Procesoare suportate | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series |
| CPU Socket | AM4 |
| Brand | MSI |
| Format | ATX |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 4-pin ATX 1 x 8-pin ATX |
| Porturi seriale | 1 |
| Sloturi PCI-E x16 | 2 |
| Sloturi PCI-E x1 | 2 |
| Sloturi speciale | 2 x M.2 |
| Tehnologii suportate | DDR4 Boost Mystic Light Core Boost Wi-Fi 6E Audio Boost 5 2.5G Network Solution Lightning Gen4 Solution |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 |
