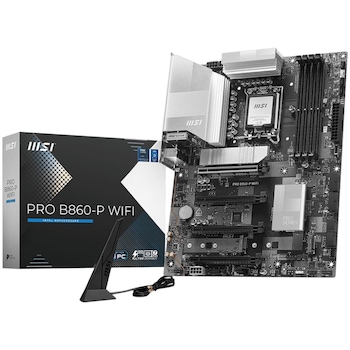

Placă de Bază MSI - PRO B860-P WIFI
| Specificații | |
| Brand | MSI |
| Format | ATX |
| CPU Socket | LGA1851 |
| Chipset | Intel B860 |
| Procesoare suportate | Intel Core Ultra Processors (Series 2) |
| Tip memorie | DDR5 |
| Capacitate maxima memorie RAM | 256 GB |
| Frecventa memorie (MHz) | 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 5.0 |
| Audio integrat | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
| LAN integrat | Realtek 8126 5Gbps LAN |
| Conectivitate | 1 x RJ-45 3 x audio jacks 1 x DisplayPort 1 x HDMI 2 x Antenna Ports 2 x USB 3.2 Gen 1 5Gbps Type-A 1 x Thunderbolt 4 2 x USB 3.2 Gen 2 10Gbps (Type-A) 4 x USB 2.0 |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 4 pin ATX 12V 1 x 8 pin ATX 12V |
| Sloturi PCI-E x16 | 4 |
| Sloturi speciale | 3 x M.2 |
| Tehnologii suportate | Click Bios Mystic Light |
| Dimensiuni (L x W) (cm) | 24.3 x 30.4 cm |
| Altele | 2x2 Wi-Fi 7 (802.11be) Bluetooth 5.4 |
