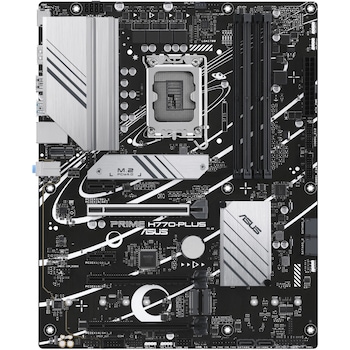

Placă de Bază ASUS - PRIME H770-PLUS
| Specificații | |
| Tehnologii suportate | ASUS Q-Design ASUS 5X Protection III ASUS Thermal Solution AURA Sync |
| Sloturi speciale | 3 x M.2 |
| Sloturi PCI-E x1 | 2 |
| Rata de transfer SATA | 6000 MB/s |
| Sloturi PCI-E x16 | 3 |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin 12V |
| Interfata Serial ATA | 4 x SATA 6Gb/s |
| Audio integrat | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| LAN integrat | Realtek 2.5Gb Ethernet |
| Conectivitate | 2 x USB 2.0 3 x audio jacks 1 x DisplayPort 1 x Ethernet LAN 1 x HDMI 3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C) 3 x USB 3.2 Gen 1 1 x Vertical M.2 slot (Key E) |
| Slot PCI | PCI-Express 5.0 |
| Sloturi memorie | 4 |
| Suport Dualchannel | Da |
| Frecventa memorie (MHz) | 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 |
| Capacitate maxima memorie RAM | 192 GB |
| Tip memorie | DDR5 |
| Procesoare suportate | Intel Core din generatia 14, 13 si 12, Intel Pentium Gold, Celeron Processor |
| Chipset | Intel H770 |
| CPU Socket | 1700 |
| Format | ATX |
| Brand | ASUS |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 cm |
| Altele | AI Suite 3 |
| BIOS & memorie BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
