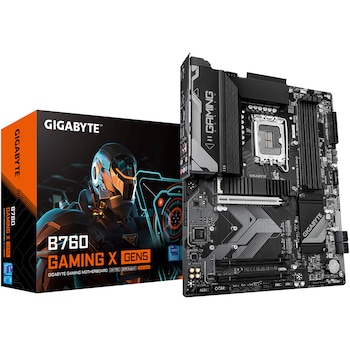

Placă de Bază Gigabyte - B760 GAMING X GEN5
| Specificații | |
| Brand | Gigabyte |
| Format | ATX |
| CPU Socket | LGA 1700 |
| Chipset | B760 |
| Procesoare suportate | Intel Core din generatia 14, 13 si 12, Intel Pentium Gold, Celeron Processor |
| Tip memorie | DDR5 |
| Frecventa memorie (MHz) | 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 |
| Suport Dualchannel | Da |
| Sloturi memorie | 4 |
| Slot PCI | PCI-Express 5.0 |
| Audio integrat | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN integrat | Realtek 2.5GbE LAN chip |
| Conectivitate | 1 x RJ-45 6 x Audio Jacks 1 x DisplayPort 5 x USB 2.0/1.1 1 x HDMI 1 x USB 3.2 Gen 1 Tip-A 1 x USB 3.2 Gen 1 Tip-C 1 x USB 3.2 Gen 2 Tip-A |
| Interfata Serial ATA | 4 x SATA III |
| Rata de transfer SATA | 6000 MB/s |
| Conector sursa (pini) | 1 x 24 pin ATX 1 x 8 pin ATX 12V |
| Sloturi PCI-E x16 | 3 |
| Sloturi speciale | 3 x M.2 |
| Tehnologii suportate | Q-Flash Q-Flash Plus GIGABYTE Control Center (GCC) Smart Fan 6 |
| BIOS & memorie BIOS | 1 x 256 Mbit flash |
| Dimensiuni (L x W) (cm) | 30.5 x 24.4 cm |
